Help for Control Tab

Data Taking in Different Modes

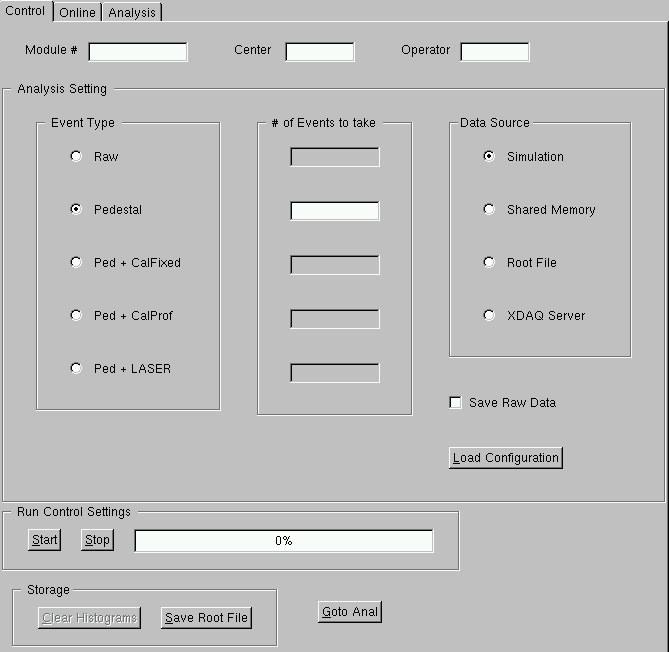

The Data Acquisition control is performed in this TAB. The Histograms and Raw Data (if needed) can also be saved using different buttons.

The "Module #", "Center Name", and the "Operator Name" can be specified in the respective Text Entries.

Before starting DAQ one needs to specify the Acquisition type and number of Events to be taken in the "Analysis Setting" frame. The available types are,

Raw : data would be taken using random triggers but no further calculations are performed! Number of Events should be specified in the adjacent " # of Events to Take" field and the Acquisition will be stopped at that event number.
Pedestal : data would be taken using random triggers and Pedestal, Raw Noise, Common Mode, and Common Mode Noise calculations would be performed in an iterative way using "TT6 Algorithm". In this algorithm first 500 events are used for Pedestal and Noise initialization and after that Pedestal, Noise.... are updated at every 100th event. Number of Events should be specified in the adjacent text field and the Acquisition will be stopped at that event number. Number of Events specified should at least be 600 so that the algorithm can be used effectively.
Ped + CalFixed : in this option in the first part of the run Pedestal calculation is performed with random trigger which would be followed by a "Calibration Swipe" at a fixed Latency (already defined in APV) for all the strips. 200 events are collected at each strip. One needs to activate the "Calibration" option in the TSC TAB in the beginning of the run. In the analysis (by software) the "Internal Calibration" for APV in dis-activated during pedestal calculation and re-activated during the calibration scan. The number of events in this case indicates the events for Pedestal calculation.
Ped + CalProf : in this option in the first part of the run Pedestal calculation is performed with random trigger which would be followed by a "Calibration Scan". The scan is done with 96 time-steps in case of APV Peak Mode and with 64 time steps in case of APV Deconvolution Mode. One needs to activate the "Calibration" option in the TSC TAB in the beginning of the run. In the analysis (by software) the "Internal Calibration" for APV in dis-activated during pedestal calculation and re-activated during the calibration scan. The number of events in this case indicates the events for Pedestal calculation. During the scan 500 events are taken at each time-step.
Ped + Laser : similar to the "Ped + Calib" type, data will be taken with Laser signal following Pedestal calculation with random trigger. Here also, Number of Event to be specified in the "text field" is for the Pedestal Calculation.

Data can be read from different sources which should be specified in the "Data Source" frame. The available options are

Simulation : for the development and testing purposes one can use this option. Here random numbers are generated to play the role of APV raw data. Then the complete TT6 Algorithm chain is used to calculate pedestal/noise.....
Shared Memory : data are read from the shared memory using the CMS_Like DAQ Servers. To use this option on needs to start the shared memory servers properly using "startSHMServers" script. Data is analysed using TT6 Algorithm.
Root File : raw data are read from the ROOT file taken through XDAQ application e.g. Beam Test Data/System Test Data. Selection of this option would enable a File Dialog to select the data file name. Data is analysed using TT6 Algorithm.
XDAQ Server : THIS OPTION IS NOT YET IMPLEMENTED !!!

The Data can be saved in a text file. One should select the "Save Raw Data" Check Button before starting acquisition, which would then enable a "File Dialog" to choose file name for data storage. The file will be opened during data acquisition and the data writing would start. At the end of the run the file will be closed. Raw data can ONLY be saved for the "Pedestal Run" !

One can specify the TT6 Analysis Parameters using Load Configuration button. A pop-up window would appear to select the XML file name from where the parameters should be read. The example is given in the "setting.xml" file in the top directory.


 <RunControlDialog>
   <AnalysisSetting InitEvent="500" UpdateEvent="100" DefineNoisy="1" CutSig="3.
0" CutNoisy="5.0" CutDead="0.5" CMTopology="128" CMFlag="1"/>
 </RunControlDialog>

Different actions during Data Acquisition are controlled in the "Run Control Setting" frame. The saving of data and histograms are activated in the "Storage" frame.

Start DAQ : Once run type is selected the "Start" button should be clicked to start the data acquisition. The % of data taken would be indicated in the "progress bar" and at it would show "100%" at the end of the run. During "Calibration Scan" the "progress bar" will indicate the % of time-step.

Stop DAQ : Data acquisition can be stopped in the middle of a run (if needed) using "Stop" button.

Save Histograms : Once Data Acquisition is finished one can store the histograms in a root file using "Save Histograms" button. The "Save Histograms" button would activate a File Dialog for the file name selection. Othewise also the histograms are saved in a default root file with a "mod_xxxx.root" where xxx will be the module number as defined in the Text Field". This filewill be overwritten each time DAQ is started.

Clear Histograms : After finishing a run and before starting a new run the histograms can be cleared using "Clear Histogram" button.

Goto Anal : One can use this button to check the analysed data immediately. Clicking this button would enable users to go directly to the "Analysis Tab" where Pedestal/Noise... can be viewed. The latest file would automatically be loaded.

Note : During Data Acquisition the histograms can be seen Online in the "Online Tab". There are different TAB's for each type of histogram.
