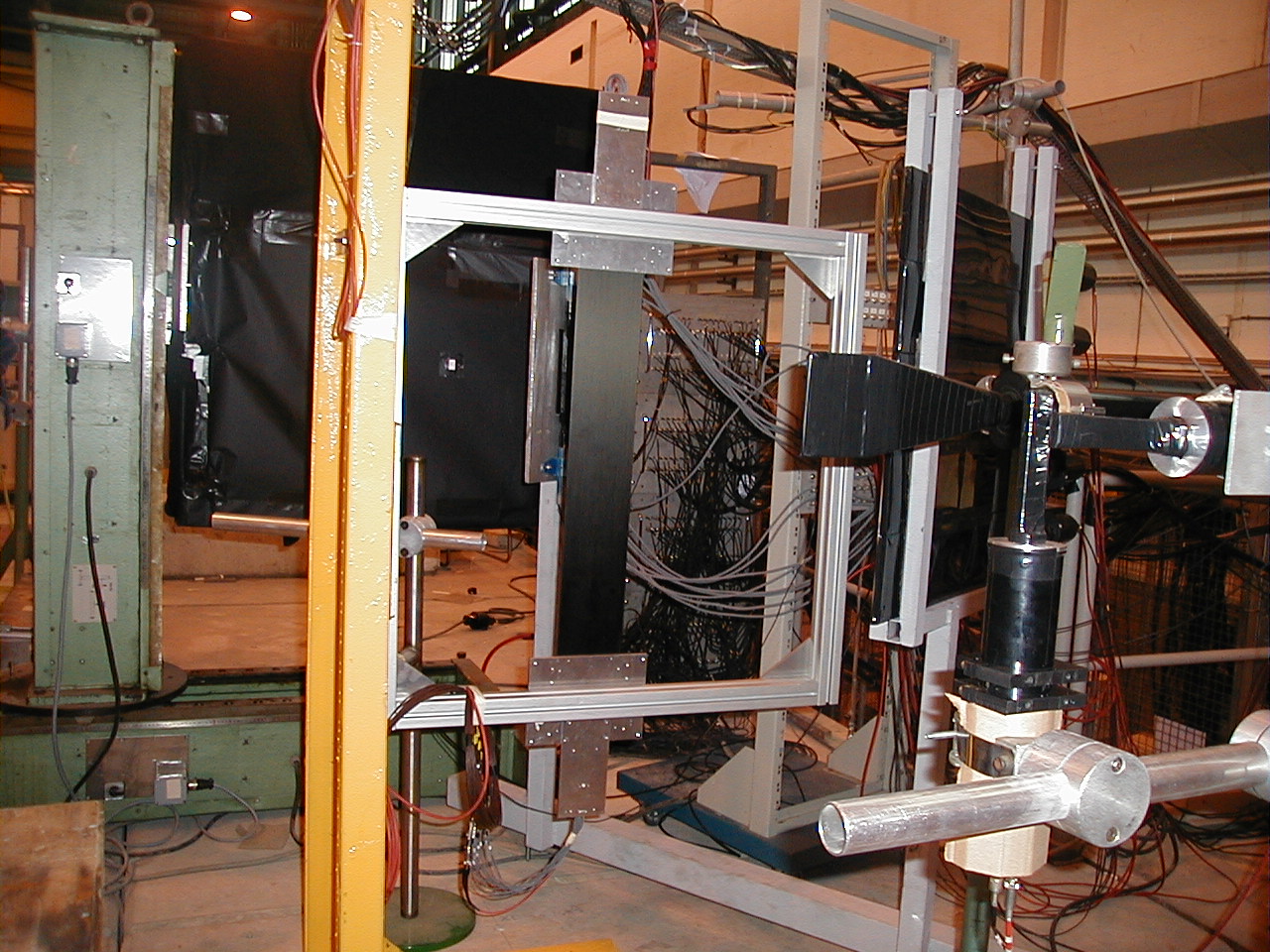

- Hodo prototype after installation on the X7 beam line.
(picture below)

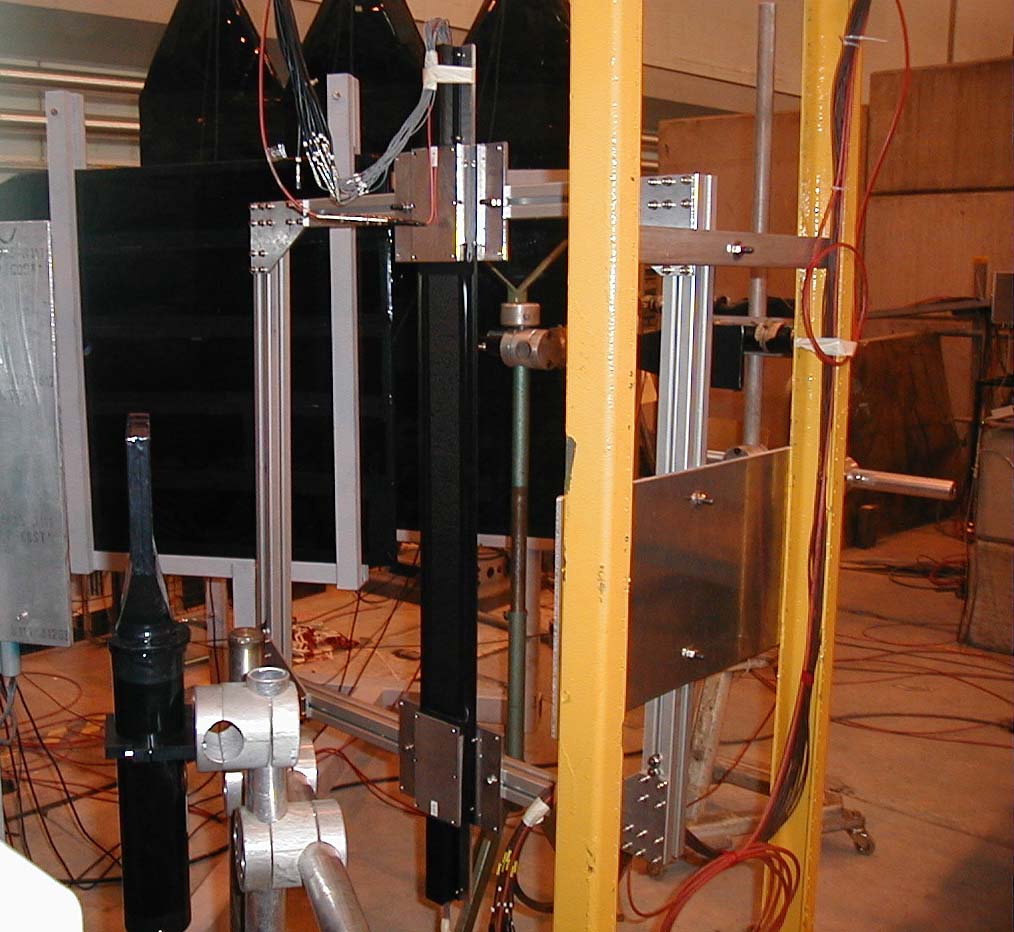

- The hodoscope was mounted vertically with the PMT-B (with tapered voltage divider) on top and PMT-A (with standard bleeder) at the bottom
(picture below)

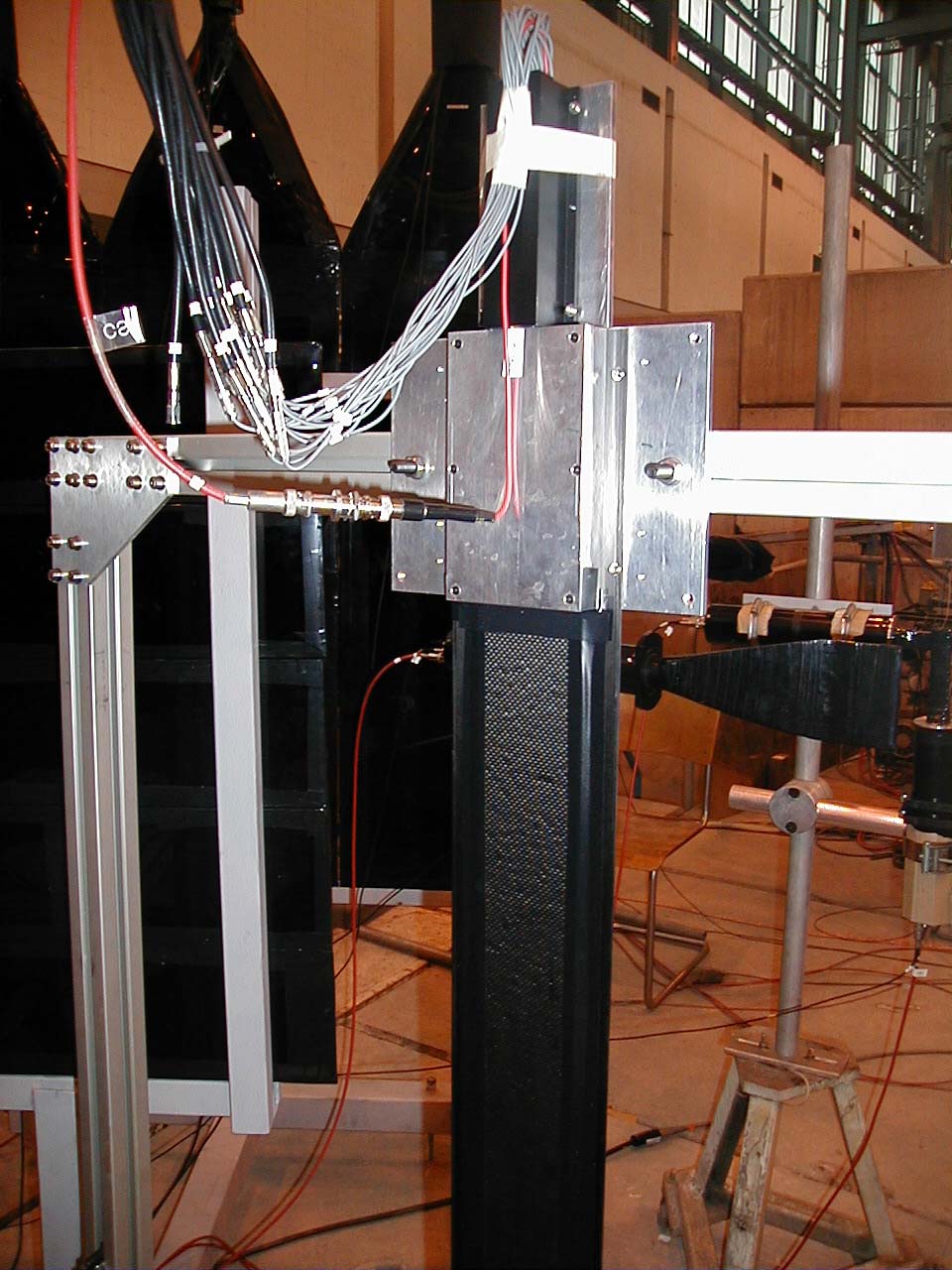

- view from the rear (beam entering the picture). The Carbon fiber which supports the scintillating fibers is clearly visible.
(picture below)

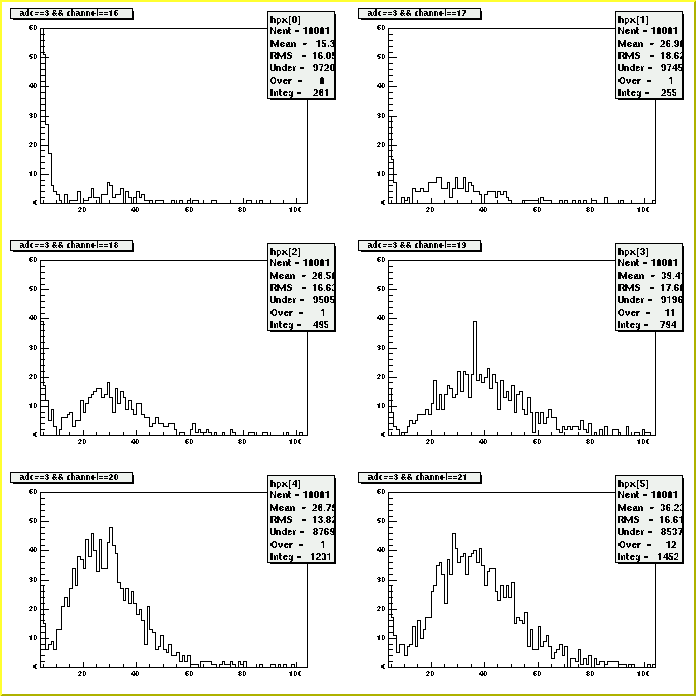

- online plots of pulse height of individual fibers (not equalized) :
the Landau distribution of the m.i.p. is clearly visible.
(picture below)
